Your current location :Home / Products / Drying equipment series / XF boiling dryer

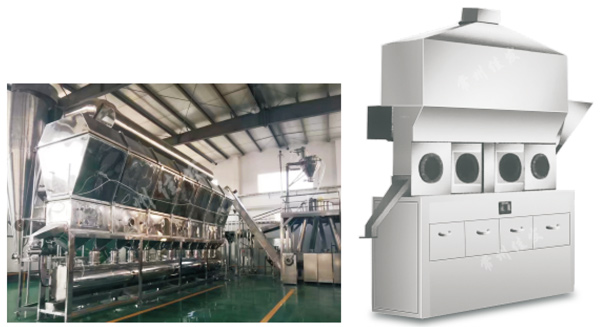

XF boiling dryer
It is suitable for the drying of powdery and granular materials, such as raw materials in pharmaceuticals, tablet granules, traditional Chinese medicine granules, plastic resins in chemical raw materials, citric acid, and other powdery and granular materials. It is also used for the drying of food and beverage granules, grain processing, corn germ, feed, etc.
13606122988
Details

Application Overview

  It is suitable for the drying of powdery and granular materials, such as raw materials in pharmaceuticals, tablet granules, traditional Chinese medicine granules, plastic resins in chemical raw materials, citric acid, and other powdery and granular materials. It is also used for the drying of food and beverage granules, grain processing, corn germ, feed, etc. The particle size of the material can generally reach 0.1-6mm, with the best being 0.5-3mm.


Parameters
Project specifications

Evaporation capacity(water)(H?O.kg/ h)

Fan power (Kw)

Wind presssure(Kpa)

Air volume(m3 /h)

Inlet air temperature (℃)

Steam consumption(Kg/h)

Host size(m)

A type
B type
C type
XF-10
10--15
7.5
5.5
1500
60-200
50
4×3.5×3.2
3.5×3.5×3
5×3.5×3.5
XF-20
20--25
7.5
5.8
2000
60-200
80
4.5×4×4.2
4×4×3.2
6×4×4.5
XF-30
30--40
15
7.1
3850
60-200
150
5×4×4.8
4×4×4.2
6×4×5
XF-50
50--80
30
8.5
7000
60-200
250
5×4.8×5
5×4.8×4.5
6×4.8×5

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

VR

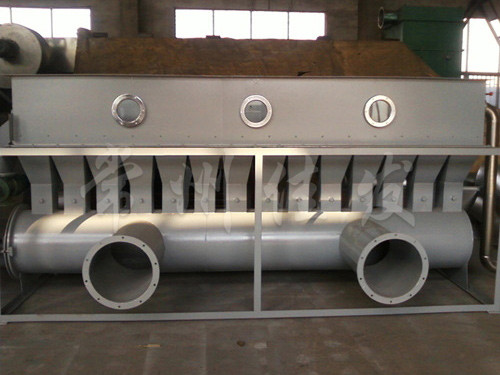

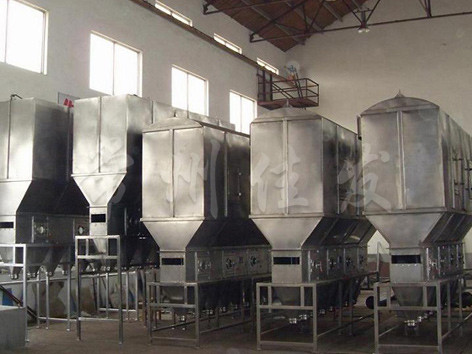

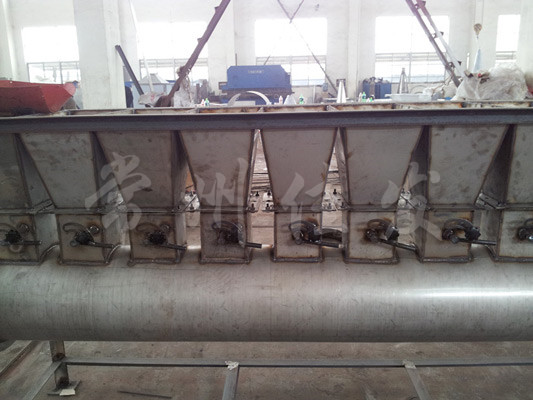

Photos
