QG, MG, JG airflow dryer
In the cyclone dryer, the airflow carries materials from the tangential direction, forming a spiral motion along the inner wall. The materials are evenly distributed and rotated in the airflow, strengthening the drying process. For materials that can be dried by airflow, the cyclone airflow dryer can adapt, especially for hydrophobic, small particles, and materials that are not afraid of crushing and heat sensitivity.
13606122988
Details

Application Overview1.jpg

  The highly dispersed gas-solid phase is subjected to convective drying to remove moisture.

Working principle

  In the cyclone dryer, the airflow carries materials from the tangential direction, forming a spiral motion along the inner wall. The materials are evenly distributed and rotated in the airflow, strengthening the drying process. For materials that can be dried by airflow, the cyclone airflow dryer can adapt, especially for hydrophobic, small particles, and materials that are not afraid of crushing and heat sensitivity.

  Depending on the characteristics of the material, pulse bag dust removal can be used for dust recovery, with a recovery rate of up to 99%.

Parameters

Specification Items

Evaporated moisture(kg/h)

Installed power(kw)

Cover an area(m2)

Height(m)

QG50

50

7

20

9

QG100

100

13

32

11

QG200

200

21

40

11

QG250

250

24

64

13

QG500

500

43

96

13

QG1000

1000

100

120

15

QG1500

1500

150

200

16

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

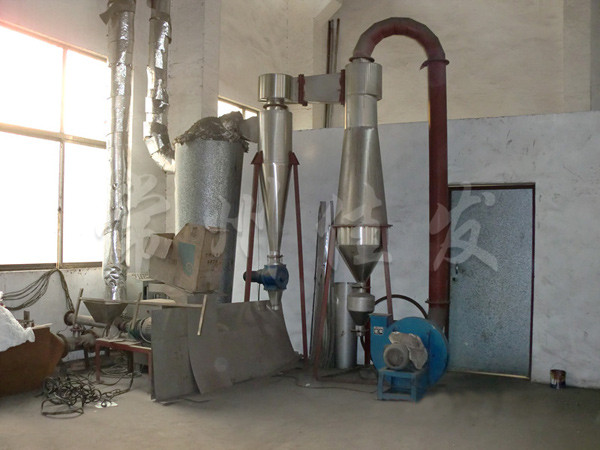

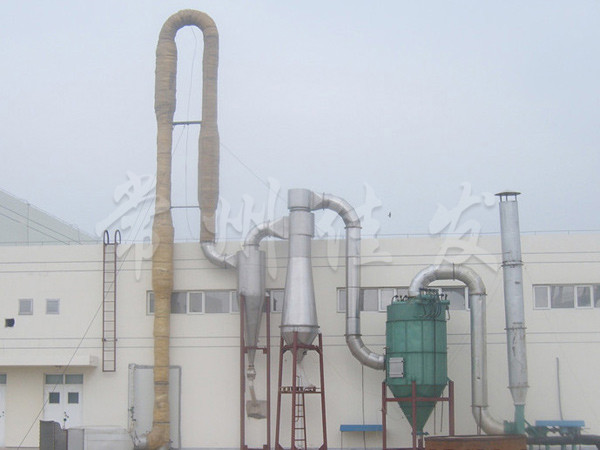

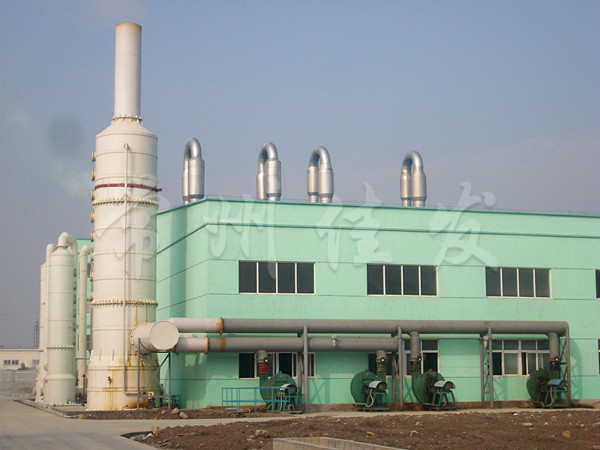

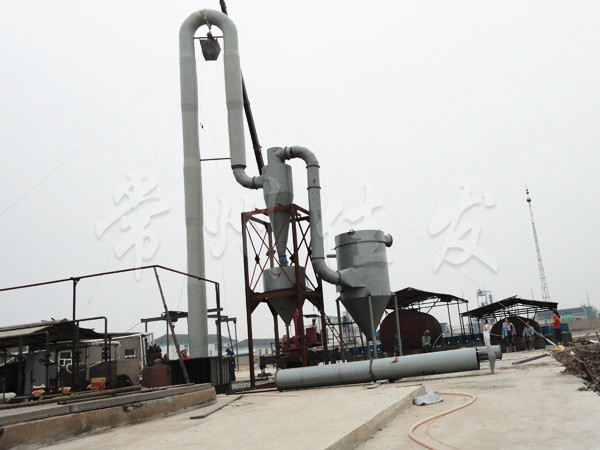

Photos
