Your current location :Home / Products / Granulation coating series / JW Extrusion Round Pellet Unit

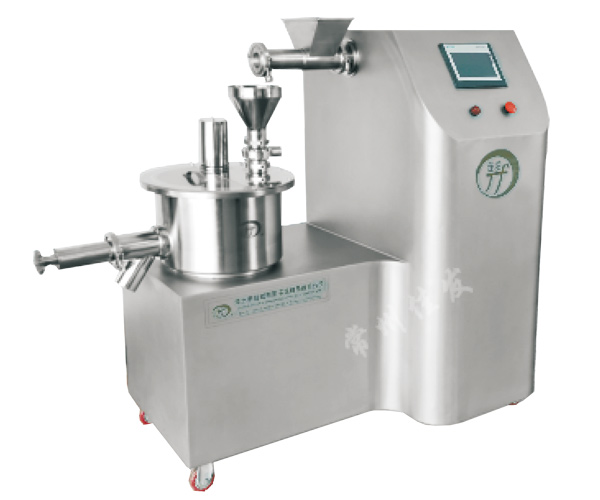

JW Extrusion Round Pellet Unit
The wet material prepared in the previous process is subjected to extrusion - centrifugal rounding to complete the shot making process.
13606122988
Details

Application Overview

  The wet material prepared in the previous process is subjected to extrusion - centrifugal rounding to complete the shot making process.

Equipment characteristics

★Squeezing - throwing a circle is completed on one machine.

★During shot blasting, dry powder can be sprinkled to prevent adhesion.

★The surface of the pellets is dense, which is conducive to coating.

★The particle size of the pellets is uniform and the true sphericity is high.


Parameters

Specification Items

Production(kg/h)

Pellet diameter(mm)

Installed power(kw)

Overall dimensions(mm)

mini

1~1.5

0.5~3.5

4.2

650x400x720

5

3~5

0.6~3.5

4.2

900x680x1100

10

5~10

0.6~3.5

8.6

1550x950x1350

30

10~30

0.6~3.5

17

1850x950x1400

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

Photos
