BGB series high-efficiency film coating machine
The high-efficiency coating machine is mainly used in the pharmaceutical and food industries. It is an efficient, energy-saving, safe, clean, and GMP compliant electromechanical integrated coating equipment for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.
13606122988
Details

Application Overview

  The high-efficiency coating machine is mainly used in the pharmaceutical and food industries. It is an efficient, energy-saving, safe, clean, and GMP compliant electromechanical integrated coating equipment for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.


Equipment characteristics

★ Constant pressure variable displacement peristaltic pump, with the cancellation of the return pipe.

★ Touch screen display.

★ Expand the PLC module, all parameters are set on the control panel.

★ Sound insulation and insulation, providing insulation for the interior of the machine.

★ Fully sealed, negative pressure operation.

★ Spray gun (Iwata, Japan) - uniform atomization, large spray surface, adjustable direction, no leakage and blockage of the nozzle.

★ Promote the frequent mixing, rolling, and exchange of materials to avoid fragmentation and improve the yield.

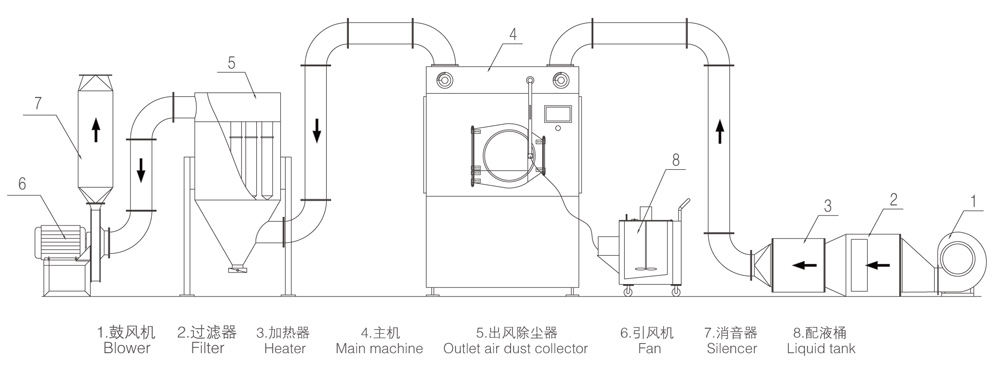

Technological process


Parameters

Project specifications

BGB-5

BGB-40

BGB-80

BGB-150

Production capacity (kg/batch)

5

40

80

150

Drum speed (rpm)

6-30

6-30

3-15

3-15

Main motor power (kw)

0.75

1.1

1.5

2.2

Efficient filtration hot air cabinet motor power (kw)

0.35

0.55

1.1

1.5

Dust removal exhaust fan motor power(kw)

2.2

3

3

5.5

Overall dimensions of the host (length × wide × High)(mm)

810×710×1410

1000×800×1600

1250×990×1880

1570×1260×2060

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

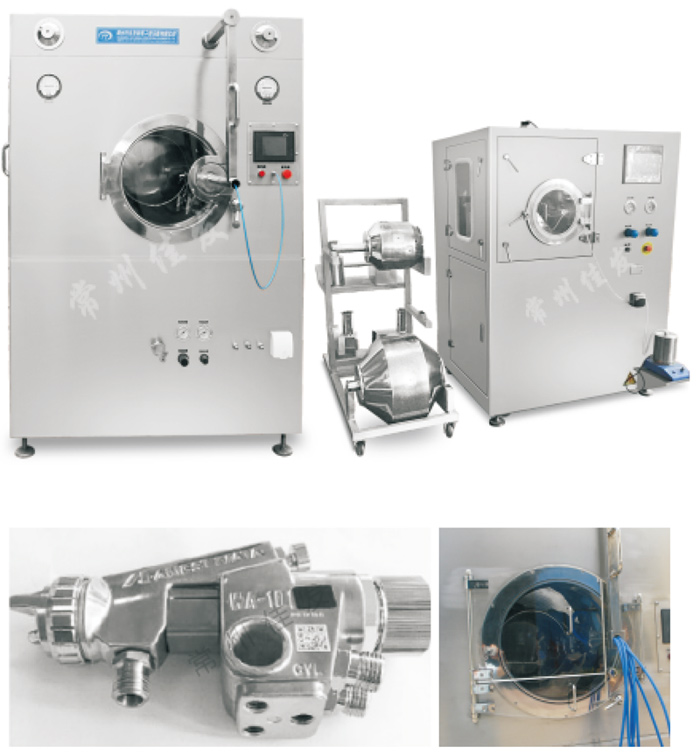

Photos
